		<title>Your Complete Guide to VGA and VGA Capture</title>
		<link>http://www.screencapturenews.com/2008/10/06/your-complete-guide-to-vga-and-vga-capture/</link>
		<comments>http://www.screencapturenews.com/2008/10/06/your-complete-guide-to-vga-and-vga-capture/#comments</comments>
		<pubDate>Mon, 06 Oct 2008 20:30:47 +0000</pubDate>
		<dc:creator>Victor</dc:creator>
				<category><![CDATA[Hardware]]></category>
		<category><![CDATA[broadcas]]></category>
		<category><![CDATA[broadcast VGA]]></category>
		<category><![CDATA[capture VGA]]></category>
		<category><![CDATA[capture X-BOX]]></category>
		<category><![CDATA[epiphan]]></category>
		<category><![CDATA[frame grabber]]></category>
		<category><![CDATA[framegrabber]]></category>
		<category><![CDATA[pixelsmart]]></category>
		<category><![CDATA[Print VGA]]></category>
		<category><![CDATA[printing handouts]]></category>
		<category><![CDATA[record VGA]]></category>
		<category><![CDATA[remote guidance]]></category>
		<category><![CDATA[resolution security]]></category>
		<category><![CDATA[screenshot]]></category>
		<category><![CDATA[telemedicine]]></category>
		<category><![CDATA[term vga]]></category>
		<category><![CDATA[ultrasound]]></category>
		<category><![CDATA[vga]]></category>
		<category><![CDATA[vga capture]]></category>
		<category><![CDATA[vga grabber]]></category>
		<category><![CDATA[vga pinout]]></category>
		<category><![CDATA[VGA Recorder]]></category>
		<category><![CDATA[vga signal]]></category>
		<category><![CDATA[vga standard]]></category>
		<category><![CDATA[vga2usb]]></category>
		<category><![CDATA[webcast]]></category>
		<category><![CDATA[XBOX]]></category>

		<guid isPermaLink="false">http://www.screencapturenews.com/?p=512</guid>
		<description><![CDATA[Whether your application involves creating IT instructional manuals, recording from high resolution security systems, sharing a presentation with people from around the world, or printing handouts directly from any computer screen, you are looking at VGA video capture or VGA signal capture as a mean to achieving these goals. This article will explain in-depth how [...]<p><a href="http://sharethis.com/item?&#038;wp=3.0.1&#38;publisher=&#38;title=Your+Complete+Guide+to+VGA+and+VGA+Capture&#38;url=http%3A%2F%2Fwww.screencapturenews.com%2F2008%2F10%2F06%2Fyour-complete-guide-to-vga-and-vga-capture%2F">ShareThis</a></p>]]></description>
			<content:encoded><![CDATA[<p style="text-align: justify;">Whether your application involves creating IT instructional manuals, recording from high resolution security systems, sharing a presentation with people from around the world, or printing handouts directly from any computer screen, you are looking at VGA video capture or VGA signal capture as a mean to achieving these goals. This article will explain in-depth how VGA signal capture works and what you need to know in order to capture such a signal.</p>

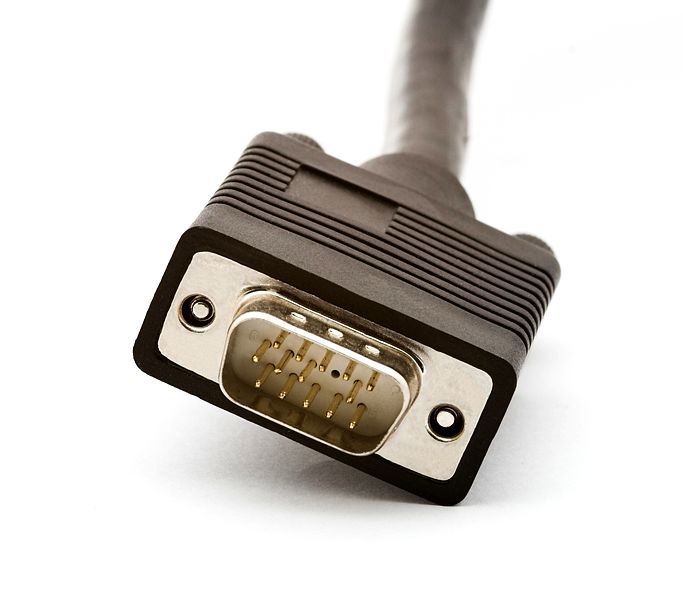

<p style="text-align: justify;"><strong>The VGA Plug</strong></p>
<p style="text-align: justify;"><a href="http://www.screencapturenews.com/wp-content/uploads/vga-connector.jpg"><img class="alignleft" style="margin: 3px;" title="VGA connector" src="/wp-content/uploads/vga-connector-150x150.jpg" alt="VGA connector" width="150" height="150" /></a></p>
<p style="text-align: justify;">Unlike DVI or HDMI, which are both digital standards, a VGA signal is purely analog. The differences between VGA, DVI, and HDMI are described in detail in <a href="/hardware/vga-dvi-hdmi-what-they-are-and-how-they-differ/" target="_blank">this article</a>.</p>
<p style="text-align: justify;">&#8220;VGA&#8221; is short for Video Graphics Array and has been the most common connector/plug for analog video on computer equipment and various electronics with an analog video output since the introduction of personal computers (PCs). VGA carries a RGB (red-green-blue) signal and is sometimes referred to as &#8220;D-Sub&#8221; due to its’ 15-pin &#8220;subminiature&#8221; connector. The term “VGA” also refers to the VGA standard graphics resolution &#8211; 640×480 pixels.</p>
<p style="text-align: justify;">A detailed VGA pinout is shown below to help advanced users understand how VGA works. <a href="http://www.bbdsoft.com/video.html" target="_blank">Source</a>.</p>
<p style="text-align: center;"><a href="http://www.screencapturenews.com/wp-content/uploads/vga-pinout.jpg"><img class="size-full wp-image-513 aligncenter" title="vga-pinout" src="http://www.screencapturenews.com/wp-content/uploads/vga-pinout.jpg" alt="" width="239" height="172" /></a></p>
<p style="text-align: justify;"><span style="font-size: small;"><br />
 </span></p>
<h2 style="text-align: center;"><span style="font-size: small;">VGA Video Connector Pinout</span></h2>
<table class="data" style="text-align: center; height: 460px;" border="1" cellpadding="5" width="217" align="center">
<tbody>
<tr align="center">
<th><span style="font-size: small;">Pin #</span></th>
<th><span style="font-size: small;">Signal Name</span></th>
</tr>
<tr align="center">
<td>1</td>
<td>Red</td>
</tr>
<tr align="center">
<td>2</td>
<td>Green</td>
</tr>
<tr align="center">
<td>3</td>
<td>Blue</td>
</tr>
<tr align="center">
<td>4</td>
<td>No Connect</td>
</tr>
<tr align="center">
<td>5</td>
<td>Ground</td>
</tr>
<tr align="center">
<td>6</td>
<td>Ground</td>
</tr>
<tr align="center">
<td>7</td>
<td>Ground</td>
</tr>
<tr align="center">
<td>8</td>
<td>Ground</td>
</tr>
<tr align="center">
<td>9</td>
<td>No Connect</td>
</tr>
<tr align="center">
<td>10</td>
<td>Ground</td>
</tr>
<tr align="center">
<td>11</td>
<td>No Connect</td>
</tr>
<tr align="center">
<td>12</td>
<td>DDC DAT</td>
</tr>
<tr align="center">
<td>13</td>
<td>Horizontal Synchronization</td>
</tr>
<tr align="center">
<td>14</td>
<td>Vertical Synchronization</td>
</tr>
<tr align="center">
<td>15</td>
<td>DDC Clock</td>
</tr>
</tbody>
</table>
<p style="text-align: center;"> </p>
<p style="text-align: justify;"><strong>VGA Frame Grabbers and How They Work</strong></p>
<p style="text-align: justify;">The only true way to capture and record a VGA signal is through a VGA-compatible frame grabber. A VGA frame grabber can be defined as a device that proccesses analog VGA signals and converts them into digital signals readable by computer equipment. While frame grabbers are described in slightly higher detain in <a href="http://en.wikipedia.org/wiki/Frame_grabber" target="_blank">this Wikipedia article</a>, these three main internal components determine a VGA frame grabber&#8217;s performance:</p>
<ol style="text-align: justify;">
<li>ADC (analog-to-digital) converter. This is the circuit that transforms the analog signal coming from the source VGA signal into a digital stream that can be read by the target computer.</li>
<li>RAM (random-access memory). Also referred to as buffer memory, this memory is vital in storing the captured image for a short period of time on board the actual frame grabber.</li>
<li style="text-align: justify;">FPGA (field-programmable gate array). This is the heart of the frame grabber and is analogous to a processor inside a PC. It is a part that is entirely programmed by the manufacturer of the frame grabber. </li>
</ol>
<p style="text-align: justify;">Some frame grabbers, like the <a href="http://www.pixelsmart.com/vga.html" target="_blank">PixelSmart VGA Master</a> have no on-board RAM buffer memory. This fact alone, besides leading to a lower-quality image, lowers the maximum possible capture rate (also referred to as frame rate) achievable by the frame grabber. Frame grabbers without on-board RAM are sufficient for the capture of presentations with lots of static slides or any other static imagery, like capturing screenshots from the computer&#8217;s BIOS. On the other hand, if you are capturing a high-resolution image and/or are capturing from a source with a high frame rate, like a video game console (ie XBOX 360) or medical equipment (ie: ultrasound), a frame grabber with at least 16MB RAM would be preferred.  The <a href="http://www.epiphan.com/products/frame-grabbers/vga2usb-pro/" target="_blank">VGA2USB Pro by Epiphan Systems</a>, for example, has 32MB RAM memory and is able to capture at a whopping 60 frames per second in some resolutions.</p>
<p style="text-align: center;"><a href="http://www.screencapturenews.com/wp-content/uploads/pixelsmart-vga-master1.jpg"><img class="size-medium wp-image-515 aligncenter" title="pixelsmart-vga-master1" src="http://www.screencapturenews.com/wp-content/uploads/pixelsmart-vga-master1-225x300.jpg" alt="" width="225" height="300" /></a></p>

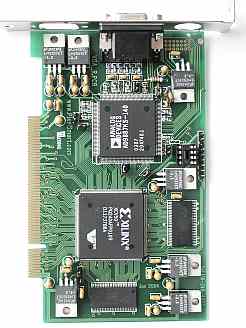

<p style="text-align: center;"><em>PixelSmart&#8217;s Internal PCI VGA-Master</em></p>
<p style="text-align: justify;"> </p>
<p style="text-align: center;"><a href="http://www.screencapturenews.com/wp-content/uploads/epiphan-vga2usb-pro.png"><img class="size-full wp-image-516 aligncenter" title="epiphan-vga2usb-pro" src="http://www.screencapturenews.com/wp-content/uploads/epiphan-vga2usb-pro.png" alt="" width="500" height="223" /></a></p>
<p style="text-align: center;"><em>Epiphan Systems&#8217; external USB-based VGA2USB Pro frame grabber</em></p>
<p style="text-align: justify;">While RAM is important in defining the characteristics of a frame grabber and the quality of the image it outputs, another important factor is the way that the FPGA, or processor, is programmed. You will notice that the higher-end frame grabbers, like the VGA2USB Pro pictured above, have built-in features that some of the more basic frame grabbers, like the PixelSmart, do not have. A quick look at the <a href="http://www.epiphan.com/products/frame-grabbers/" target="_blank">Epiphan Systems webpage</a> reveals the following features programmed via the FPGA processor: On-board cropping, Color space conversion, USB Transfer Accelerator™, Compression Booster Filters™. All of these software/firmware features allow the frame grabber to achieve extremely high quality and transfer rates without increasing the frame grabber&#8217;s size.</p>
<p style="text-align: justify;">Please refer to our complete <a href="http://www.screencapturenews.com/hardware/comparison-table-for-best-vga-and-dvi-frame-grabbers/" target="_blank">Frame Grabber Specifications Comparison Table</a> for detailed and complete specifications on every VGA frame grabber on the market.</p>
<p><br class="spacer_" /></p>
<p style="text-align: justify;"><strong>Applications for Frame Grabbers</strong></p>
<p style="text-align: justify;">Frame Grabbers, while being a niche product, have many practical uses in today&#8217;s IT-oriented business environment. The five most common and prominent uses are described in detail in our <a href="http://www.screencapturenews.com/solutions/top-5-uses-for-high-resolution-frame-grabbers-you-should-know-about/" target="_blank">Top 5 Uses for High Resolution Frame Grabbers You Should Know About</a> article. From the gaming industry to the military, frame grabbers are used accross many fields related to computer technology. To give you a general idea, some industry-specific uses for high resolution VGA frame grabbers are described below.</p>
<p style="text-align: justify;"><strong>Computer Console Gaming</strong></p>
<p style="text-align: justify;">Microsoft&#8217;s <a href="http://www.xbox.com/en-US/" target="_blank">X-BOX 360</a> gaming console has the ability to output its images via VGA or DVI. This means that a VGA frame grabber can be used to capture and record the gameplay from this game console, and even broadcast the gameplay live over the internet for other viewers to see.</p>
<p style="text-align: center;"><a href="http://www.screencapturenews.com/wp-content/uploads/xbox-capture.jpg"><img class="size-medium wp-image-519 aligncenter" title="xbox-capture" src="http://www.screencapturenews.com/wp-content/uploads/xbox-capture-300x240.jpg" alt="" width="300" height="240" /></a></p>

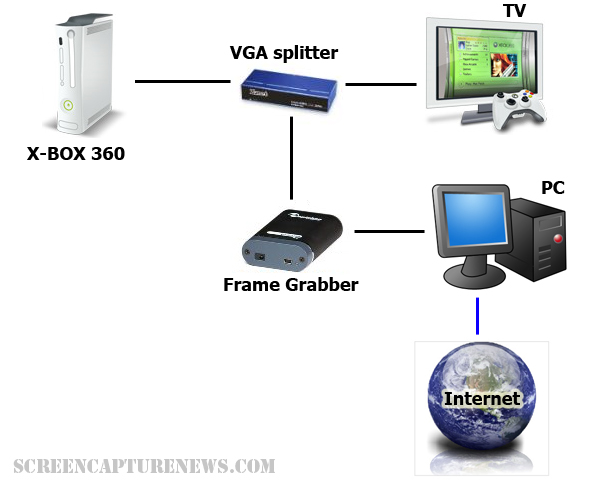

<p style="text-align: justify;">The diagram above explains how to connect an X-BOX 360 to a frame grabber for recording and broadcasting the gameplay. The X-BOX&#8217;s VGA cable is connected to a VGA splitter&#8217;s input, from which one VGA output goes to the TV, and the other to the frame grabber-equipped computer. The image can then be broadcasted to the internet using the computer.</p>
<p style="text-align: justify;"><strong>Presentation, Conference Broadcasting and Recording<br />
 </strong></p>
<p style="text-align: justify;">In today&#8217;s globalized business world, businesses often have partners in many different countries. When conducting an online meeting or presentation, the presenter often has the need to share his screen with viewers around the world. For this exact reason, VGA frame grabbers are useful. They allow the presenter to not only share an image from a projector, but also from a BIOS screen, an ATM machine, a RADAR device, a medical ultrasound device, a security system, or even an electronic microscope. Most of these VGA sources are not able to be broadcasted in real-time with the use of traditional software sources, and frame grabbers are the only way to properly create diagnostic-quality images and videos from these devices.</p>
<p style="text-align: center;"><a href="http://www.screencapturenews.com/wp-content/uploads/broadcasting-with-frame-grabber.jpg"><img class="size-medium wp-image-405 aligncenter" title="Broadcasting with frame grabber" src="http://www.screencapturenews.com/wp-content/uploads/broadcasting-with-frame-grabber-300x185.jpg" alt="" width="300" height="185" /></a></p>
<p style="text-align: justify;">In the diagram above, the VGA source is connected directly to a frame grabber-equipped PC with access to the internet. Using any web broadcasting software, the user is able to relay the images and video captured by the frame grabber to his or her audience.</p>
<p style="text-align: justify;"><strong>Security System Surveillance Recording and Broadcasting</strong></p>
<p style="text-align: justify;">Today&#8217;s security systems and cameras are able to support digital formats as well as high resolutions required for complex security solutions. Of course, as solution is needed to record the outputs from the security system, store it in a digital format, and provide access to the files from remote locations. All of this can be accomplished with VGA frame grabber-based technology, such as the <a href="http://www.epiphan.com/solutions_new/surveillance-monitoring/security-system-recording/" target="_blank">VGA Recorder</a>, which have ample space for recording video files (up to 500GB), are able to directly transmit recordings to a remote FTP location, and give access to the recorded files through a web interface.</p>
<p style="text-align: center;"><a href="http://www.screencapturenews.com/wp-content/uploads/recorder-diagram.jpg"><img class="size-medium wp-image-522 aligncenter" title="recorder-diagram" src="http://www.screencapturenews.com/wp-content/uploads/recorder-diagram-300x244.jpg" alt="" width="300" height="244" /></a></p>

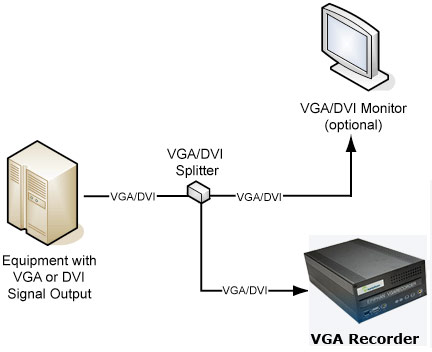

<p style="text-align: justify;">The diagram above, borrowed from the <a href="http://www.epiphan.com/" target="_blank">Epiphan Systems</a> website, shows how easy it is to hook up a security system&#8217;s VGA output to the VGA Recorder. Everything can be set up in minutes, and the VGA Recorder is able to archive hundreds of hours of digital compressed video data to its internal hard drive.</p>
<p style="text-align: justify;"><strong>Telemedicine and Remote Guidance</strong></p>
<p style="text-align: justify;">Telemedicine, also known as Remote Guidance, is an expanding field in which doctors are able to, through the internet, diagnose patients and provide advice. Telemedicine has many practical applications but some of the more notable ones are the delivery of expertise to areas in which it is not practical to have a qualified doctor at all times. For example, lets suppose that a player on a sports team gets a knee injury. Through telemedicine, the coach can use a portable ultrasound device like the <a href="http://www.gehealthcare.com/usen/ultrasound/products/lbook_index.html" target="_blank">Logiq Book XP</a> and, with the aid of a frame grabber, relay the images from the Logiq Book directly to a qualified radiologist who can then make a decision on the severety of the injury.</p>
<p style="text-align: center;"><a href="http://www.screencapturenews.com/wp-content/uploads/vga2usb-diagram.jpg"><img class="size-medium wp-image-526 aligncenter" title="vga2usb-diagram" src="http://www.screencapturenews.com/wp-content/uploads/vga2usb-diagram-300x146.jpg" alt="" width="300" height="146" /></a></p>

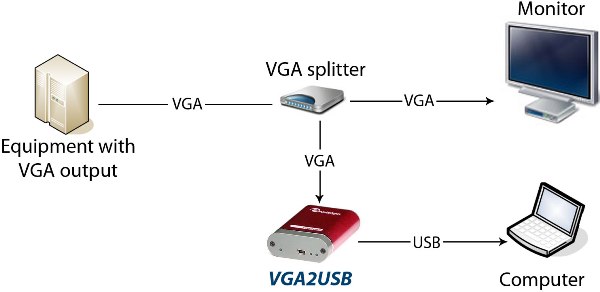

<p style="text-align: justify;">The diagram above shows how any equipment with a VGA output, such as the ultrasound device, can be connected to a frame grabber, and the a computer. The images are then relayed to the qualified radiologist or doctor through the internet or a satellite uplink. If you would like to find out more about the field of remote guidance,  then <a href="http://www.remoteguidance.org/" target="_blank">this website</a> is a good start.</p>
<p style="text-align: justify;"> </p>
<p style="text-align: justify;"><strong>Summary</strong></p>
<p style="text-align: justify;">The VGA signal is the most common format used on today&#8217;s electronics and computer-based equipment. When this equipment is coupled with a VGA frame grabber, the possibilities are endless. Using a frame grabber, which is a relatively inexpensive device, organizations can not only significantly cut costs, but can also improve their productivity.</p>
